Gaggenau is a premium brand known for its high-end home appliances, distinguished by a blend of innovative technology, durable materials, and a clear, minimalist design aesthetic. Founded in 1683 in the Black Forest region of Germany, Gaggenau has a rich history that spans over 300 years, initially starting as a hammer mill before evolving into a manufacturer of enameled signs and later, kitchen appliances.
Gaggenau
Handleless door / damped door closing system
Continuous flow heater for instant coffee and constant brewing temperature
Aroma brewing technology for full aroma
Self-cleaning after each draw
TFT touch display
Further details
Handleless door / damped door closing system
Continuous flow heater for instant coffee and constant brewing temperature
Aroma brewing technology for full aroma
Self-cleaning after each draw
TFT touch display
Bezel-less appliance with attached control module
Preparation of all beverages at the touch of a button
Personalization function
7 light scenarios
Electronic level control for milk, water and coffee beans guarantees perfect results
Beverage types
Ristretto / 2 x ristretto.
Espresso / 2 x espresso.
Espresso Macchiato / 2 x Espresso Macchiato.
Coffee / 2 x coffee.
Americano / 2 x Americano.
Latte / 2 x latte.
Latte Macchiato / 2 x Latte Macchiato.
Cappuccino / 2 x Cappuccino.
Flat White / 2 x Flat White.
Milk Foam / 2 x Milk Foam.
Warm milk / 2 x Warm milk.
Hot water / 2 x hot water.
Operation
Door with damped door closing function.
Operation by rotary knob and TFT touch display.
Plain text display.
Personalization function, storage possibility of 8 individualized beverages.
4-stage beverage size setting, volume individually adjustable to cup size.
8-step coffee strength setting from very mild to extra strong.
3-stage coffee temperature setting.
10-step hot water temperature setting.
4-step coffee-milk ratio adjustment.
Stepless grind adjustment.
Height adjustable coffee spout 7-15 cm.
Easy access to water, milk and bean containers behind the door.
Equipment
Maintenance-free ceramic disc grinder.
Separate coffee powder drawer for a second pre-ground coffee type.
Water pump with 19 bar pressure.
Double grind and brew for extra strong drinks with single draw.
In case of double beverage withdrawal, double grinding and brewing process.
Integrated milk system in the beverage spout.
Insulated stainless steel milk container for up to 0.5 liters.
Integrated lighting with LEDs.
Removable bean hopper with aroma protection lid for 500 g, for easy switching between different bean types.
Automatic grinding quantity adjustment.
Removable 2.4 liter water tank.
Electronic water filter change indicator.
Electronic level control for drip tray and coffee grounds container.
Home network integration for digital services (Home Connect) wired via lan (recommended) or wireless via WiFi.
The use of the Home Connect function depends on the Home Connect services, which are not available in every country. For more information, visit home-connect.com.
Security
Parental control.
Cleaning
Fully automatic rinsing program when switching on and off.
Automatic steam cleaning of the milk system after each beverage.
Automatic cleaning and descaling program.
Emptying program to prepare the machine for vacation or transport.
When changing bean type, the empty grinder function is used to remove residues of the previous type from the system.
Removable brewing unit.
Coffee grounds container and drip tray dishwasher safe.
Beverage spout dishwasher safe.
Planning information
Door stop not changeable.
Ideal installation height 95 -145 cm (top edge of niche floor).
Lateral gap between appliance front and furniture front min. 5 mm.
Distance between furniture body and front surface 21 mm.
For corner installation, lateral clearances must be provided.
Door opening angle of approx. 110° (as delivered) - distance to the wall must be at least 350 mm.
Door opening angle of approx. 155° - distance to the wall must be at least 650 mm.
Door opening angle of approx. 92° - distance to the wall must be at least 100 mm (spare part no. 00636455).
Installation in 59 cm standard niche directly above 14 cm high warming drawer.
lan connection is located at the bottom right in rear view.
Special accessory (order as spare part):
ET-No. 17000705 Water filter cartridge
ET-No. 00311819 Descaling tablets
ET-No. 00311769 Cleaning tablets
ET-No. 00636455 Limitation for opening angle 92°
ET-No. 11015223 Bean container with lid
Connection data
Total connected load 1.6 kW.
Connection cable 1.7 m with plug is included in delivery.
lan cable not included.
Power standby/display off 0.5 W.
Power standby/network 2.0 W.
Time auto standby/display on 30 min.
Time auto standby/network 30 min.
Please refer to the instructions in the user manual if you want to turn off the WiFi function.
Gaggenau
Handleless door / automatic door opening
Continuous flow heater for instant coffee and constant brewing temperature
Aroma brewing technology for full aroma
Self-cleaning after each draw
TFT touch display
More details
Handleless door / automatic door opening
Continuous flow heater for instant coffee and constant brewing temperature
Aroma brewing technology for full aroma
Self-cleaning after each draw
TFT touch display
Bezel-less machine with attached control module
Preparation of all beverages at the touch of a button
Personalization function
7 light scenarios
Electronic level control for milk, water and coffee beans guarantees perfect results
Beverage types
Ristretto / 2 x ristretto.
Espresso / 2 x espresso.
Espresso Macchiato / 2 x Espresso Macchiato.
Coffee / 2 x coffee.
Americano / 2 x Americano.
Latte / 2 x latte.
Latte Macchiato / 2 x Latte Macchiato.
Cappuccino / 2 x Cappuccino.
Flat White / 2 x Flat White.
Milk Foam / 2 x Milk Foam.
Warm milk / 2 x Warm milk.
Hot water / 2 x hot water.
Operation
Automatic door opening.
Operation by rotary knob and TFT touch display.
Plain text display.
Personalization function, storage possibility of 8 individualized beverages.
4-stage beverage size setting, volume individually adjustable to cup size.
8-step coffee strength setting from very mild to extra strong.
3-stage coffee temperature setting.
10-step hot water temperature setting.
4-step coffee-milk ratio adjustment.
Stepless grind adjustment.
Height adjustable coffee spout 7-15 cm.
Easy access to water, milk and bean containers behind the door.
Equipment
Maintenance-free ceramic disc grinder.
Separate coffee powder drawer for a second pre-ground coffee type.
Water pump with 19 bar pressure.
Double grind and brew for extra strong drinks with single draw.
In case of double beverage withdrawal, double grinding and brewing process.
Integrated milk system in the beverage spout.
Insulated stainless steel milk container for up to 0.5 liters.
Integrated lighting with LEDs.
Removable bean hopper with aroma protection lid for 500 g, for easy switching between different bean types.
Automatic grinding quantity adjustment.
Removable 2.4 liter water tank.
Electronic water filter change indicator.
Electronic level control for drip tray and coffee grounds container.
Home network integration for digital services (Home Connect) wired via lan (recommended) or wireless via WiFi.
The use of the Home Connect function depends on the Home Connect services, which are not available in every country. For more information, visit home-connect.com.
Security
Parental control.
Cleaning
Fully automatic rinsing program when switching on and off.
Automatic steam cleaning of the milk system after each beverage.
Automatic cleaning and descaling program.
Emptying program to prepare the machine for vacation or transport.
When changing bean type, the empty grinder function is used to remove residues of the previous type from the system.
Removable brewing unit.
Coffee grounds container and drip tray dishwasher safe.
Beverage spout dishwasher safe.
Planning information
Door stop not changeable.
Ideal installation height 95 -145 cm (top edge of niche floor).
Distance between furniture carcass and front surface 47 mm.
For corner installation, lateral clearances must be provided.
Door opening angle of approx. 110° (as delivered) - distance to the wall must be at least 350 mm.
Door opening angle of approx. 155° - distance to the wall must be at least 650 mm.
Door opening angle of approx. 92° - distance to the wall must be at least 100 mm (spare part no. 00636455).
Installation in 59 cm standard niche directly above 14 cm high warming drawer.
lan connection is located at the bottom right in rear view.
Special accessory (order as spare part):
ET-No. 17000705 Water filter cartridge
ET-No. 00311819 Descaling tablets
ET-No. 00311769 Cleaning tablets
ET-No. 00636455 Limitation for opening angle 92°
ET-No. 11015223 Bean container with lid
Connection data
Total connected load 1.6 kW.
Connection cable 1.7 m with plug is included in delivery.
lan cable not included.
Power standby/display off 0.5 W.
Power standby/network 2.0 W.
Time auto standby/display on 30 min.
Time auto standby/network 30 min.
Please refer to the instructions in the user manual if you want to turn off the WiFi function.

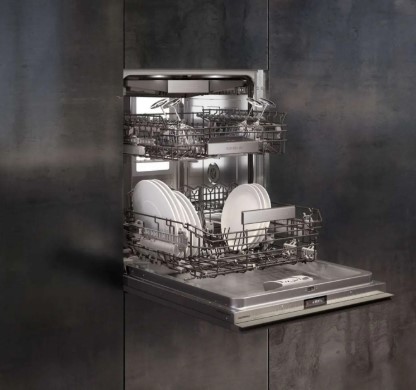

Gaggenau
Optimal protection for sensitive glasses through low-temperature drying with zeolite, sophisticated basket design and intelligent water softening
6 programs with aqua sensor and 3 options, including Power for cleaning and drying in 57 minutes and Intensive for particularly thorough cleaning in the lower basket
Flexible basket system
Bright interior lighting
Remaining time projection on the kitchen floor
further details
Optimal protection for sensitive glasses through low-temperature drying with zeolite, sophisticated basket design and intelligent water softening
6 programs with aqua sensor and 3 options, including power for cleaning and drying in 57 minutes and Intensive for particularly thorough cleaning in the lower basket
Flexible basket system
Bright interior lighting
Remaining time projection on the kitchen floor
Very quiet: 43 dB
Operation
TFT display with display of the remaining running time or end time, refilling of salt and rinse aid, control display for water inlet.
Operation using sensor buttons.
Flexible shortening of the running time of the programs, even during the rinsing process.
Drying assistant for optional door opening after the end of the program (only available when the Home Connect function is active).
Personalization function for storing individual program combinations.
Info button with operating instructions.
Time delay up to 24 hours.
Optical and acoustic end signal.
Remaining time projection.
Technical features
Bright interior lighting.
Glass protection with zeolite.
Aqua sensor .
Load sensor.
Cleaner detection.
Regeneration electronics.
Heat exchanger.
Instantaneous water heater.
3-fold filter system.
Servo lock.
Aquastop.
Selected digital services (Home Connect)
Program assistant.
Temporary noise reduction.
Drying assistant for optional door opening after the end of the program.
Downloadable programs.
Home network integration for digital Services (Home Connect) wirelessly via WiFi.
The use of the Home Connect function depends on the Home Connect services, which are not available in every country. Further information can be found at home-connect.com.
Programs
6 washing programs:
Auto 35 °C - 45 °C. Auto 45°C - 65°C. Auto 65°C - 75°C. Eco 50°C. Fast 45 °C (35 min.). Personalization function (factory setting: pre-rinse).
3 options:
Intensive. Power. Half load.
Machine care.
Equipment
Flexible basket system.
Upper basket:
Overextraction. Optional cleaning zone, by activating additional spray nozzles. 3-stage Rackmatic, height adjustable up to 5 cm. 6 folding spines. 4 folding shelves for optimal glass protection.
Lower basket:
8 folding spikes. 2 folding shelves for optimal glass protection. Divided glass holder.
Cutlery basket.
Maximum plate sizes (upper/lower basket):
29/28, 26.5/30.5 or 24/ 34 cm.
Capacity for 13 place settings.
Loading with a maximum of 23 wine glasses possible.
Consumption data
Energy efficiency class B on a scale of efficiency classes from A to G.
From 9.5 l of water.
From 0.635 kWh.
Sound power 43 dB (re 1 pW ).
Planning information
Height-adjustable feet.
Device base setback 100 mm (see drawing).
Um In order to be able to display the remaining time projection, there must be at least a base recess (40 mm + furniture front thickness).
The maximum base height must be reduced by 30 mm in order to enable the optimal display of the remaining time projection.
Back foot adjustable at the front.
Door weight up to 10 kg.
The size of the door front depends on the base height of the respective kitchen furniture.
Connection data
Total connected load 2.0 kW - 2.4 kW.
Connecting cable, pluggable.
Water connection with screw connection 3/4".
Connection to hot or cold water possible.
Power standby/network 2.0 W.
Power consumption not switched off 0.5 W.
Power consumption switched off 0.5 W.
Time auto standby/network 2 min.
Duration of not switched off state 0 min.
Please note the instructions in the instructions for use when using the WiFi function want to switch off.
Gaggenau
Optimal protection for sensitive glasses through low-temperature drying with zeolite, sophisticated basket design and intelligent water softening
8 programs with aqua sensor and 4 options, including Power for cleaning and drying in 57 minutes and Intensive Plus for adjusting cleaning zones in the lower basket
Flexible basket system with smooth-running pull-outs on all levels and cushioned retraction for the upper and lower baskets
Perfectly illuminated interior
Push-to-open Function for perfect integration with handleless furniture fronts
Further details
Optimal protection for sensitive glasses through low-temperature drying with zeolite, well thought-out basket design and intelligent water softening
8 programs with aqua sensor and 4 options, including Power for cleaning and drying in 57 minutes and Intensive Plus for adjusting cleaning zones in the lower basket
Flexible basket system with smooth-running pull-outs on all levels and cushioned retraction for upper and lower basket
Perfectly illuminated interior
Push-to-open function for perfect integration with handle-free furniture fronts
Flexible hinge for reduced base height from 50 mm or high installation
Side information light
Very quiet: 43 dB
Operation
TFT display with display of the remaining run - or end time, need for refilling of salt and rinse aid, control display for water inlet.
Operation using sensor buttons.
Flexible shortening of the running times of the programs, even during the rinsing process.
Personalization function for storing individual program combinations.
Info button with operating instructions.
Time delay up to 24 hours.
Optical and acoustic end signal.
Side info light.
Technical features
Perfectly illuminated interior.
Glass protection with zeolite.
Aqua sensor.
Load sensor.
Cleaner detection.
Regeneration electronics.
Heat exchanger.
Instantaneous water heater.
3-fold filter system.
Servo lock.
Aquastop.
Selected digital services (Home Connect)
Program Intelligent for adjusting the rinse cycle based on user feedback.
Program assistant.
Drying assistant for optional door opening after the end of the program.
Temporary noise reduction.< /li>
Downloadable programs.
Home network integration for digital services (Home Connect) wirelessly via WiFi.
Use of the Home Connect function depends on the Home Connect services are not available in every country. Further information can be found at home-connect.com.
Programs
8 washing programs:
Auto 35 °C - 45 °C. Auto 45°C - 65°C. Auto 65°C - 75°C. Intensive 70 °C. Eco 50°C. Night program. Fast 45 °C (35 min.). Personalization function (factory setting: pre-rinse).
4 options:
Intensive Plus. Power. Half load. Hygiene.
Machine care.
Equipment
Flexible basket system with smooth-running extensions on all levels and cushioned retraction for the upper and lower basket.< /li>
Upper basket:
Over-extension. Optional cleaning zone, by activating additional spray nozzles. 3-stage Rackmatic, height adjustable up to 5 cm. 6 folding spines. 4 folding shelves for optimal glass protection.
Lower basket:
Motorized spray arm. 8 folding spines. 2 folding shelves for optimal glass protection. Divided glass holder.
Cutlery basket.
Maximum plate sizes (upper/lower basket):
29/28, 26.5/30.5 or 24/ 34 cm.
Capacity for 12 place settings.
Loading with a maximum of 23 wine glasses possible.
Consumption data
Energy efficiency class B on a scale of efficiency classes from A to G.
From 9.5 l of water.
From 0.626 kWh.
Sound power 43 dB (re 1 pW ).
Planning information
Height-adjustable feet.
Device base setback 100 mm (see drawing).
Rear foot Adjustable at the front.
Door weight up to 11 kg.
The size of the door front depends on the base height of the respective kitchen furniture.
Installation and operation also possible with a furniture handle. The push-to-open function remains active.
Connection data
Total connection value 2000-2400 W.
Connection cable, pluggable.< /li>
Water connection with screw connection 3/4".
Connection to hot or cold water possible.
Power standby/network 2.0 W.
Time auto standby/network 2 min.
Please note the instructions in the instructions for use if you want to switch off the WiFi function.
Gaggenau

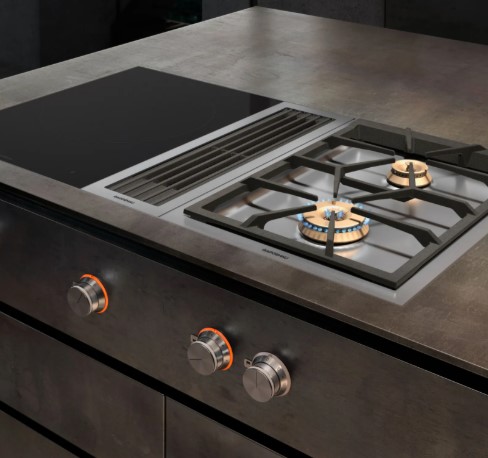

One large cooking surface
Free placement of cookware
All sizes and formats of cookware can be used
Intuitive control of all functions via TFT touch display
Cooking sensor function for temperature control in pots and pans
Further details
One large cooking surface
Free placement of cookware
All sizes and formats of cookware can be used
Intuitive control of all functions via TFT touch display
Cooking sensor function for temperature control in pots and pans
Professional cooking functions
Max. Power for large cookware of up to 5.5 kW
Frameless for flush installation
Cooking zones
A single cooking surface of 3200 cm².
Simultaneous use of max.6 cookware on the cooktop possible.
Operation
User-friendly color TFT touch display with operating instructions.
Electronic control in 17 power levels.
Equipment
Cooking sensor function.
Professional cooking function.
Dynamic cooking function.
Teppan Yaki function.
Booster function pots.
Booster function for pans.
Keep warm function.
Individual pot recognition.
Automatic cooking time for each cooking zone.
Stopwatch.
Short-time alarm.
Info button with operating instructions.
Energy management.
Cooktop-based ventilation control (with matching hood).
Home network integration for digital services (Home Connect) wirelessly via WiFi.
The use of the Home Connect function depends on the Home Connect services, which are not available in every country. For more information, visit home-connect.com.
Security
Main switch.
Residual heat indicator.
Child lock.
Safety shutdown.
Pause function.
Planning information
Only suitable for iron-magnetic cookware. For optimal temperature distribution, cookware with sandwich bottom is recommended.
The wok pan wp 400 001 cannot be used on this appliance.
Installation is suitable in countertops made of stone, synthetic material or solid wood. Heat resistance and waterproof sealing of cut edges must be considered. For other materials, consult with the countertop manufacturer regarding use.
The load-bearing capacity and stability, especially with thin worktops, must be ensured by suitable substructures. Take into account the weight of the unit including additional load.
The groove must be continuous and even to ensure even support of the equipment on the seal. Do not use spot relining.
Device must be fastened from below.
The joint width may vary due to dimensional tolerances of the glass ceramic panel and the worktop cut-out.
Weight of appliance: approx. 31 kg.
Connection data
Total connected load 7.4 kW.
Connection cable 1.5 m without plug.
Power standby/display off 0.5 W.
Power standby/network 2.0 W.
Please follow the instructions in the user manual if you want to switch off the WiFi function.
Gaggenau
High quality kitchen appliances from Gaggenau; oven 200 series. Available in 3 colors. 9 heating systems, with pizza cooking function. TFT touch display. The control module is built into the door. Electronic temperature control from 50°C to 300°C.
Gaggenau
Handleless door / automatic door opening / door opening possible via voice assistant
Pyrolysis
9 heating methods, with baking stone function
TFT touch display
Bezel-less appliance with attached control module
Further details
Handleless door / automatic door opening / door opening via voice assistant possible
Pyrolysis
9 heating methods, with baking stone function
TFT touch display
Bezel-less appliance with attached control module
Electronic temperature control from 50 °c to 300 °c
76 liters usable volume
Heating methods
Hot air.
Eco hot air.
Top heat + bottom heat.
Top heat.
Bottom heat.
Hot air + lower heat.
Surface grill + convection.
Surface grill.
Baking stone function.
Operation
automatic door opening.
Operation by rotary knob and TFT touch display.
Plain text display.
Possibility to save individual recipes.
Info button with operating instructions.
Side-opening door with 180° opening angle.
Equipment
Brick socket.
Actual temperature display.
Quick heat-up.
Timer functions: Cooking time duration, cooking time end, short time alarm, stopwatch, long time timer (Star-K certified).
60 W halogen lighting on top.
Enameled side grates with 4 rack levels, pyrolysis resistant.
Home network integration for digital services (Home Connect) wired via lan (recommended) or wireless via WiFi.
The use of the Home Connect function depends on the Home Connect services, which are not available in every country. For more information, visit home-connect.com.
Security
Thermally insulated door with quadruple glazing.
Child safety lock.
Safety shutdown.
Housing cooling with temperature protection.
Cleaning
Pyrolysis.
Gaggenau enamel.
Heated catalyst for cleaning the oven air.
Planning information
Door hinge not changeable.
distance between furniture body and door front surface 47 mm.
distance between furniture carcass and outer edge of door handle 94 mm with retrofitted handle (optional accessory).
Note front projection, including door handle if necessary, for opening side drawers.
When planning a corner solution, consider a door opening angle of at least 90°.
For an installation depth of 550 mm, route the connection cable downwards on the right in the area of the beveled housing corner.
plan the junction box outside the installation niche.
lan connection is located at the top right in the rear view.
Connection data
Energy efficiency class a on a scale of efficiency classes from a+++ to D.
Total connected load 3.7 kW.
connection cable with plug is not included, therefore order separately.
Power standby/display on 0.7 W.
Power standby/display off 0.5 W.
Power standby/network 1.4 W.
Time auto standby/display on 20 min.
Time auto standby/display off 20 min.
Time auto standby/network 20 min.
lan cable not included.

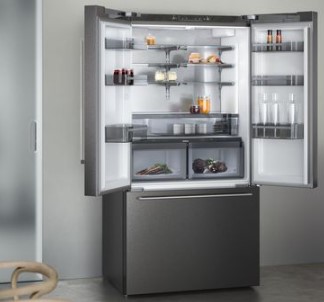

Gaggenau
Stainless steel interior with solid anthracite aluminum elements
Glare-free LeD spots with warm white light
Opening aid for the door:
1. Push-to-open function for handleless furniture fronts
2. Pull-to-open function for easier opening of the door with handle
Flat inner door with stainless steel, full-surface
Almost invisible and flexible suspension system for shelves and door racks
Further details
stainless steel interior with solid anthracite aluminum elements
Glare-free LeD spotlights with warm white light
Opening aid for the door:
1. Push-to-open function for handleless furniture fronts
2. Pull-to-open function for easier opening of the door with handle
Flat inner door with stainless steel, full-surface
Almost invisible and flexible suspension system for storage surfaces and door shelves
Door shelves made of solid anthracite aluminum
1 fresh food drawer near 0 °c with manual temperature control and 1 fresh food drawer with manual humidity control
Integrated ice maker with fixed connection for water inlet
Fully extendable freezer drawer with practical subdivision in anthracite color
TFT touch display
Total usable capacity 555 liters
Operation via TFT touch display.
Plain text display.
Technical features
Dynamic cold distribution.
automatic defrost with defrost water evaporation.
Damped door retraction system.
activated carbon air filter.
Sleep mode, Star-K certified.
When sleep mode is active, door and drawer can be opened with one handle only.
alarm in case of open door or malfunction.
Home network integration for digital services (Home Connect) wirelessly via WiFi.
The use of the Home Connect function depends on the Home Connect services, which are not available in every country. For more information, visit home-connect.com.
Cooling
No-frost technology with fast cooling.
Temperature adjustable from +2 °c to +8 °c.
2 safety glass shelves, white glass, individually adjustable in height.
1 satin glass shelf.
4 brilliant LeD spots with glare-free and warm white light (3500 k) in refrigerator compartment and drawers.
Flat inner door with fully flexible suspension system for door shelves.
3 height adjustable door shelves, 1 of them extra deep.
Total cooling capacity 389 liters.
Fresh cooling close to 0 °c
1 fully extendable fresh refrigeration drawer close to 0 °c with transparent front, illuminated.
Steamed drawer.
Temperature manually adjustable.
Ideal for meat, fish and poultry.
Fresh cooling
1 fully extendable fresh food drawer with transparent front and lighting.
Steamed drawer.
Humidity manually adjustable.
Ideal for fruit and vegetables.
Freezing
No-frost technology with fast freezing at -30 °c.
Temperature adjustable from -14 °c to -24 °c.
4-star freezer compartment.
Freezing capacity 14 kg /24 hrs.
Storage time in case of malfunction 13 hrs.
2 fully extendable drawers, 1 of which is inside. outside drawer with synchronously running drawer slides.
Interior lighting with 2 LeD spots, warm white light.
Useful capacity 166 liters.
Ice maker
Integrated in the freezer compartment, with fixed connection for water inlet.
Particle filter for water inlet, integrated in ventilation grille.
Saturation indicator in TFT touch display.
can be switched off.
ice production approx. 1.6 kg/24 hrs.
removable ice cube tray for a supply of approx. 3 kg.
Consumption data
energy efficiency class e on a scale of efficiency classes from a to G.
energy consumption 326 kWh/year.
Noise value 42 dB (a) re 1 pW.
Planning information
Flat hinge.
Door hinge right, exchangeable.
Door opening angle 115°, fixable to 90°.
Max. permissible door front weight:
Door 47 kg.
Drawer 12 kg.
shut-off valve for water connection must be planned on the side next to the unit and must always be accessible.
If water pressure exceeds 0.8 MPa (8 bar), install pressure limiter between drinking water connection and hose set.
Connection data
Total connected load 0.300 kW.
connection cable 3.0 m, pluggable.
Water inlet.
Inlet hose 2.0 m with 3/4 " connection.
Water pressure range 2 to 8 bar.
