Dornbracht represents the epitome of luxury in bathroom and kitchen design, offering a wide range of premium fixtures and fittings. Renowned for its quality, precision engineering, and groundbreaking designs, the brand has become synonymous with architectural aesthetics and functionality.
Dornbracht's products are a favorite among architects and designers for their ability to transform ordinary spaces into sophisticated and elegant environments, reflecting a commitment to craftsmanship and avant-garde style.
Dornbracht
CYO fittings series combines Dornbracht design history with the current spirit of the age – aspiring, as always, to create lasting values. You think you know the design language, yet the effect is unseen and forward looking. A commanding statement in both progressive and classic bathrooms.
Individual colours: For many series, we put the entire range of RAL colours into effect as painted surfaces - from a minimum quantity of one.
Expanding the variety of finishes: With electroplating technology, PVD, powder-coating or wet painting, the possibilities are almost limitless.
Dornbracht
Individual colours: For many series, we put the entire range of RAL colours into effect as painted surfaces - from a minimum quantity of one.
Expanding the variety of finishes: With electroplating technology, PVD, powder-coating or wet painting, the possibilities are almost limitless.
170mm projection
Fixed spout
Circular, air-enriched flow
Hole diameter spout 37 mm
Hole diameter single-lever mixer 57 mm
Rosette for spout Ø 55mm
Rosette for mixer Ø 78mm
Max. flow 7 l/min
Lead-free
WRAS 2107048
Dornbracht

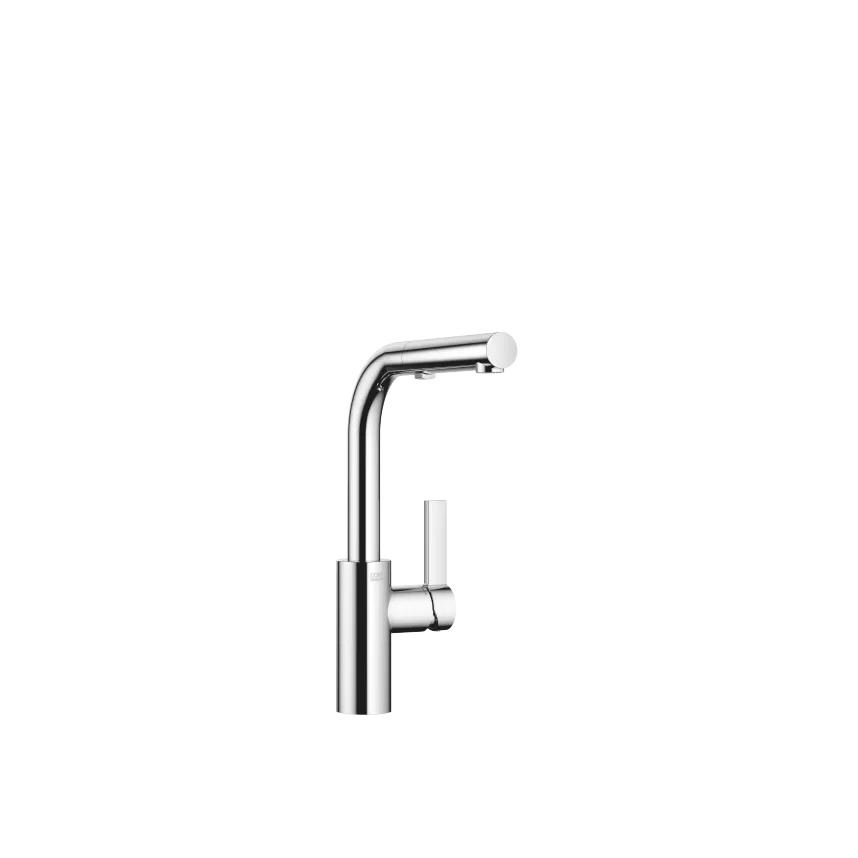

Surprisingly flexible. ELIO stands for easy, daily tasks in the kitchen. The appearance of the series is characterised by round, harmonious shapes. Optionally available with extending spout or extending spray, the working range of the fitting can be easily extended over the entire work area.
Individual colours: For many series, we put the entire range of RAL colours into effect as painted surfaces - from a minimum quantity of one.
Expanding the variety of finishes: With electroplating technology, PVD, powder-coating or wet painting, the possibilities are almost limitless.
235mm projection
Pivotable spout 360°
Air-enriched flow and spray flow
Height of mixer 342 mm
Height up to aerator 292 mm
Hole diameter 35 mm
Fabric braided hose 1500 mm
Max. flow 8 l/min at 3 bar flow pressure
Lead-free
This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
Intrinsic protection against back flow.
Dornbracht
Individual colours: For many series, we put the entire range of RAL colours into effect as painted surfaces - from a minimum quantity of one.
Expanding the variety of finishes: With electroplating technology, PVD, powder-coating or wet painting, the possibilities are almost limitless.
225mm projection
Pivotable spout 130°
Air-enriched flow and spray flow
Height of mixer 254 mm
Height up to aerator 179 mm
Hole diameter 35 mm
1600mm metal shower hose
Max. flow 9.6 l/min at 3 bar flow pressure
Lead-free
This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
Intrinsic protection against back flow.
Dornbracht
IMO unites two prevalent formal expressions, combining a round body with a rightangled lever and spout. This hybrid-shape design lends the series a universality, which appears modern, clear-cut and high-quality. IMO is the fitting for all those who want to design their bathroom themselves.
Individual colours: For many series, we put the entire range of RAL colours into effect as painted surfaces - from a minimum quantity of one.
Expanding the variety of finishes: With electroplating technology, PVD, powder-coating or wet painting, the possibilities are almost limitless.
130mm projection
Fixed spout
Rectangular, air-enriched flow
Height of mixer 154 mm
Height up to aerator 80 mm
Hole diameter 35 mm
2x screw-in M 10 x 1 pressure hose, leak-tested
Max. flow 7 l/min
Lead-free
This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
WRAS 240202005
Only suitable for basins with an overflow.
Dornbracht
IMO unites two prevalent formal expressions, combining a round body with a rightangled lever and spout. This hybrid-shape design lends the series a universality, which appears modern, clear-cut and high-quality. IMO is the fitting for all those who want to design their bathroom themselves.
Individual colours: For many series, we put the entire range of RAL colours into effect as painted surfaces - from a minimum quantity of one.
Expanding the variety of finishes: With electroplating technology, PVD, powder-coating or wet painting, the possibilities are almost limitless.
40mm projection
Fixed spout
Rectangular, air-enriched flow
Hole diameter spout 37 mm
Hole diameter single-lever mixer 57 mm
Rosette for spout 80 x 60mm
Rosette for mixer 80 x 80mm
Max. flow 5.7 l/min
Lead-free
This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
WRAS 2107018
Dornbracht
MADISON takes up the turn of the century approach to the world of style. The fascination comes from its elegant form and the value of its materials. Cross handles with white porcelain inserts and a hexagonal spout with cut facets are reminiscent of the classical model.
Individual colours: For many series, we put the entire range of RAL colours into effect as painted surfaces - from a minimum quantity of one.
Expanding the variety of finishes: With electroplating technology, PVD, powder-coating or wet painting, the possibilities are almost limitless.
Shower with fixed riser projection 420mm
Rain shower: PURE RAIN, max. flow rate 14 l/min (at 3 bar)
Function from: 8 l/min
Rain shower Ø 200 mm
Rain shower with anti-scale system
Hand shower: Three or five settings: COMPACT RAIN, COMPACT SOFT FLOW, COMPACT AQUAPRESSURE FLOW, max. flow rate 9 l/min (at 3 bar)
Spray head Ø 95mm
Rotary diverter for fixed-riser shower/hand shower
Height of fittings up to rain shower (bottom edge) 985mm
Height of fittings up to top edge of elbow 1160mm
Two-part push-on rosette Ø 65 mm
Rosette for shower holder Ø 65mm
Rosette for wall mounting Ø 60mm
Gauge 150 mm - 13 mm
Metal shower hose 1250mm with integrated anti-twist protection
1/2" connection
Pipe diameter 20 mm
Intrinsic protection against back flow.
Dornbracht
MADISON takes up the turn of the century approach to the world of style. The fascination comes from its elegant form and the value of its materials. Cross handles with white porcelain inserts and a hexagonal spout with cut facets are reminiscent of the classical model.
Individual colours: For many series, we put the entire range of RAL colours into effect as painted surfaces - from a minimum quantity of one.
Expanding the variety of finishes: With electroplating technology, PVD, powder-coating or wet painting, the possibilities are almost limitless.
135mm projection
Fixed spout
Circular, air-enriched flow
Height of mixer 72 mm
Height up to aerator 40 mm
Hole diameter valve 32 mm
Hole diameter spout 35 mm
Without rosette
2x 1/2" x 1/2" high pressure hose
Max. flow 7 l/min
Lead-free
This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
WRAS 1512009
Only suitable for basins with an overflow.
Dornbracht
The flowing yet puristic design of MEM from Dornbracht is reminiscent of the most natural and original form of water presentation: spring. The fitting takes a deliberate step back, and by doing so, is fully taken up by the individual ambience of the architecture. The series stands for clarity, reduction, and balance, and thanks to the extensive enhancement, it now offers an even greater variety of design options.
Individual colours: For many series, we put the entire range of RAL colours into effect as painted surfaces - from a minimum quantity of one.
Expanding the variety of finishes: With electroplating technology, PVD, powder-coating or wet painting, the possibilities are almost limitless.
65mm projection
Fixed spout
Rectangular, air-enriched flow
Height of mixer 310 mm
Height up to aerator 202 mm
Hole diameter 35 mm
2x screw-in M 10 x 1 pressure hose, leak-tested
Max. flow 5.7 l/min
Lead-free
WRAS 240202013
This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
Only suitable for basins with an overflow.
